X-EKS MX Pipe clamp
New product
Premium
Item #r3171

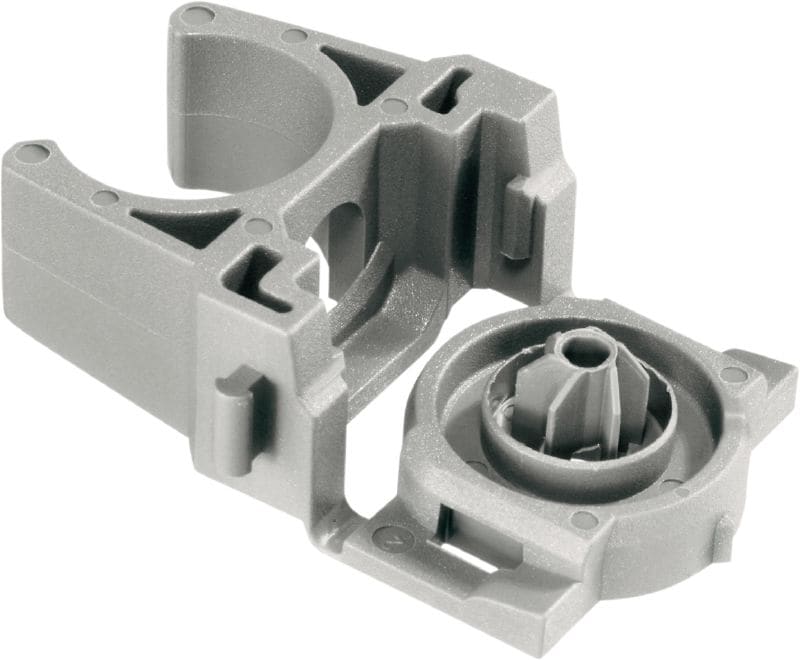

Plastic conduit clamp with clip-in design for use with collated nails
- Application: Conduits
- Material: Polyamide (PA), Halogen-free, Flame-retardant according to EN 60695-2-11 at 650°C, Flame-retardant according to IEC 60695-2-11 at 650°C, Flame-retardant according to VDE 0471 part 2-11 at 650°C, UV-resistant (fair)
- For use with (tools): BX 3-ME-22, BX 3-ME-A22, DX 351 MX, DX 460 MX, DX 5 MX, GX 120-ME, GX 3-ME
Share
Features & Applications
Features & Applications
Features
- Friction-fit in the nose of BX/GX/DX nailers for easy handling
- Silicone-free and halogen-free material
- Virtually dust-free fastening
- Quick, cost-efficient fastening
Applications

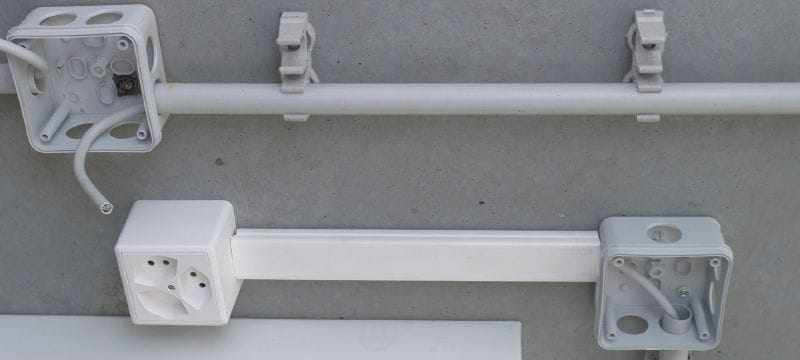

- Fastening cable conduits
- Typical spacing between fastening elements ranges from 50-100 cm – load requirements must be taken into account
For approval or certificate information, please see individual items.
