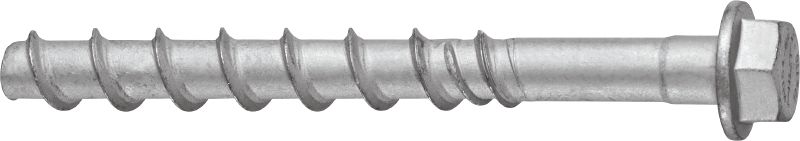

HUS4-HF Screw anchor
New productItem #r12910953
High performing hexagonal head screw anchor (multilayer corrosion protection)
- Material, corrosion: Carbon steel, multilayer coating
- Head configuration: Hex head
- Approvals / Test reports: ETA, Fire, Seismic
Share
Features & Applications
Features & Applications
Features
- Up to 2x faster than wedge anchors – fewer work steps help you save time on every single fastening
- Quicker and easier to install – no cleaning, no high-accuracy torque wrench and no hammering required
- Improved setting with less blocking in the toughest concrete – thanks to smaller core diameter and new thread design
- Extensive approvals – ETA (EAD 330232) with seismic; reusability in fresh concrete; ETA HCC-HUS for concrete overlay, FM and VDS
- Reusable and adjustable – the ideal screw anchor for temporary fastenings, HUS4 can be reused multiple times
Applications
- Temporary fastening to concrete – such as formwork props, tilt ups and prefab connectors

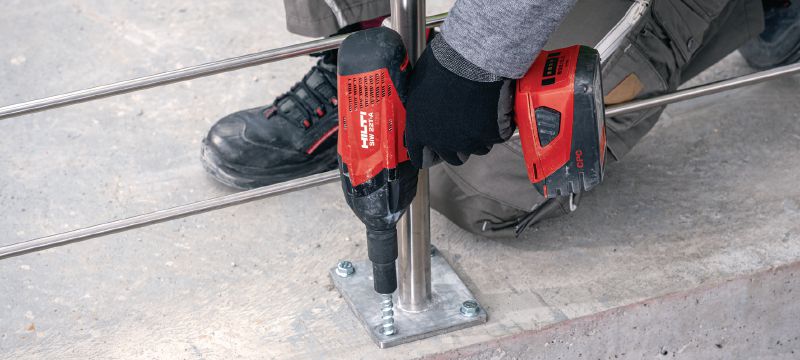

- Non-structural baseplates, handrails, seats, balustrades and light duty industrial equipment to concrete in corrosive environments
- Technical data available for fastening to hollow core slabs, lightweight concrete, masonry and aerated concrete, as well as fire resistance and stand-off installation with grout
- Suitable for use in C3 corrosive environments based on Hilti internal technical data
- Perfect for through-fastening – hexagonal head with integral washer for neat appearance
For approval or certificate information, please see individual items.
