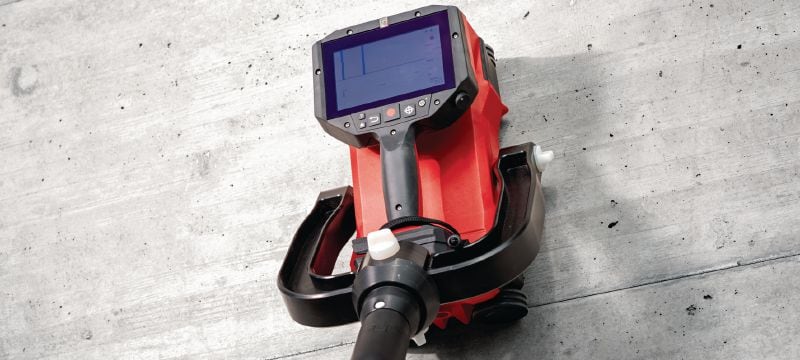

PS 300 Ferroscan
New productItem #r9374764
Concrete detector for rebar localization, depth measurement and size estimation in structural analysis
- Max. detection depth for object localization: 200 mm
- Accuracy of depth indication: 1% +/-3mm
- Localization accuracy: 1% +/-3mm mm
Share
Features & Applications
Features & Applications
Features

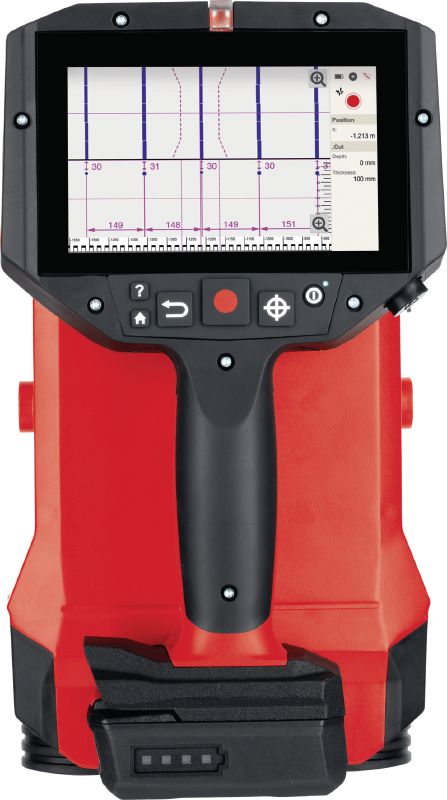

- Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
- Smart algorithm helps accurate depth measurements for rebar

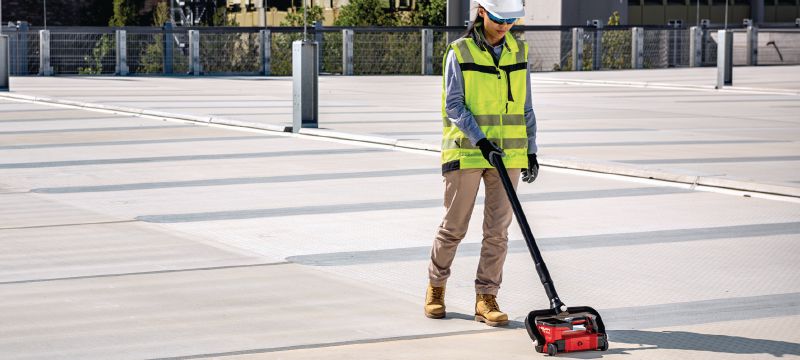

- Wide sensor area enables quick and easy scan over large areas
- Record scan data for documentation and structural analysis
Applications
- Verification and analysis for 1st layer rebar

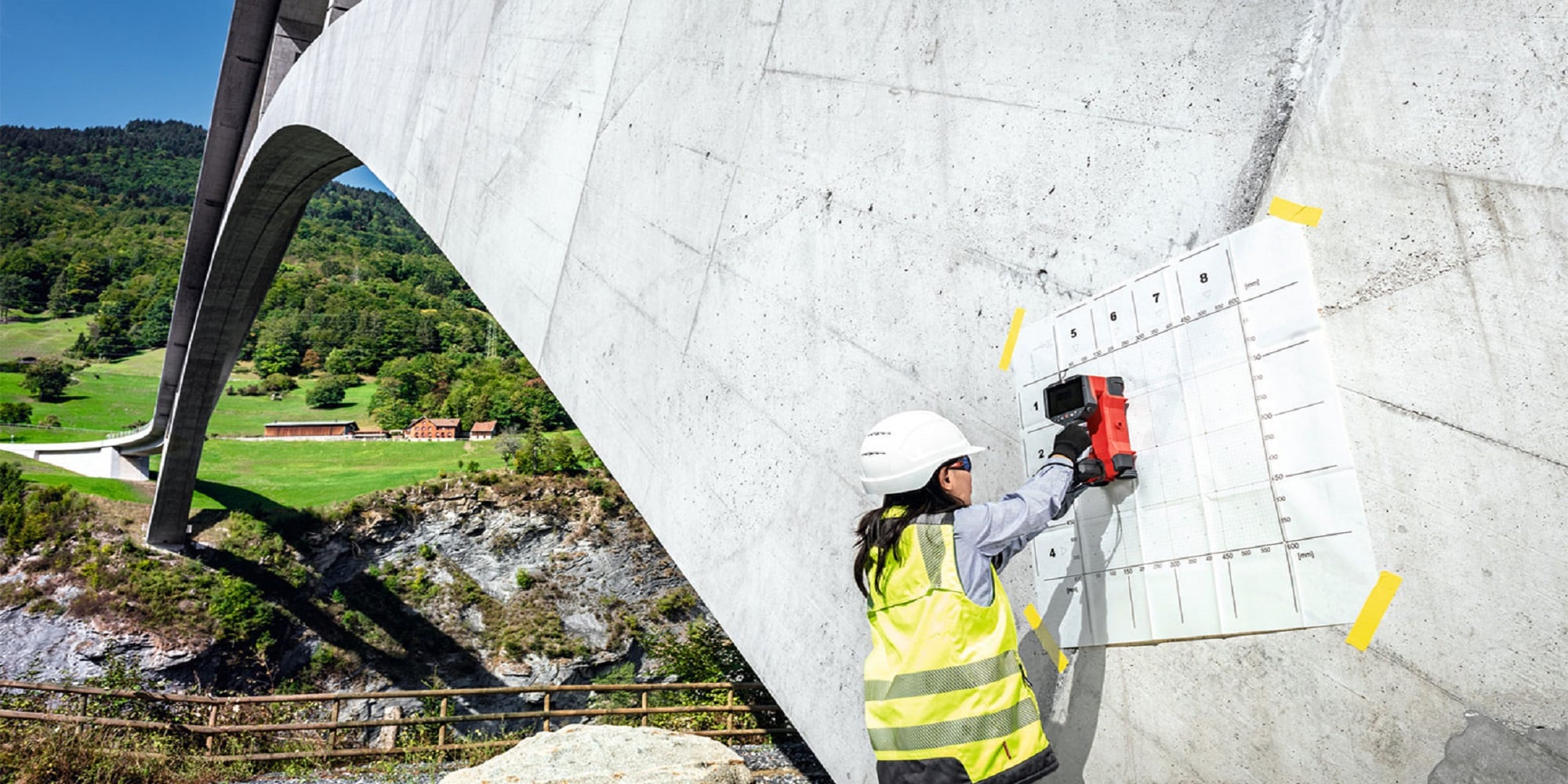

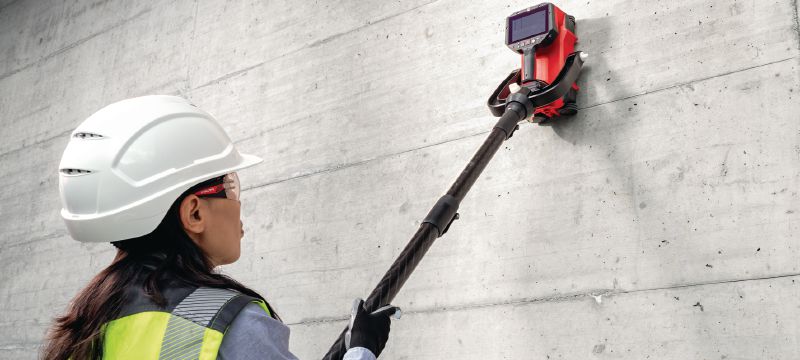

- Checking concrete cover over large areas for structural repair work
- Building acceptance inspections and quality control

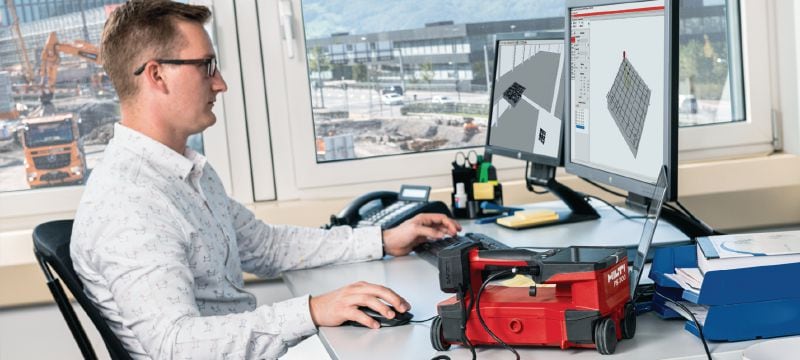

- Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas
